How Did the Snow Do This?

In forensic investigations, engineers may not always have access to all the information they desire. Consider a 70-year old building that was damaged, following a snowfall. In this scenario, the building is one of three attached structures with curved (barrel-style) roofs. For the purpose of illustration (or lack thereof), say the wreckage was removed from the site, prior to an engineer conducting a site visit but not before photographs were captured by others.

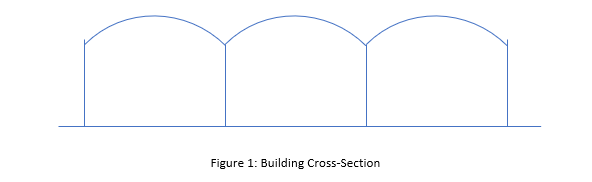

Figure 1
The photographs of the damaged building are available, and weather data from nearby sources can be researched. Conditions in the photographs and weather data converge to indicate that snow had accumulated on one side of the roof, resulting in the roof giving way and the back corner of the building falling.

Engineers characterize such an accumulation of snow on this type of roof as unbalanced. It is well known that wind can move fallen snow. When snow is pushed from one side of a roof to another, an unbalanced load is formed on the roof.

To better understand the incident, it is desired to know if the roof was simply overloaded with snow or if other circumstances may have been at play. In the absence of a physical examination of the building or any construction drawings, an engineer is left with little tangible information with which to draw a conclusion. Nonetheless, a comparative analysis could yield insight about the incident.

In this example, an analysis could be conducted to compare the actual snow load to a long-standing code requirement for live load on the roof. The theory postulates that if the effects of the actual snow load were less than the code-required minimum live load, there must have been a defect among the structure. Wind is a recognized force that can act in concert with snow. However, for a barrel-shaped roof, wind generates a suction force on half of the roof, which would negate a portion of the snow load. Further, weather data indicated that the prevailing winds did not change direction for the immediate time period surrounding the incident.

Figure 3From an analysis perspective, engineers typically consider two types of loads - point loads and distributed loads. Imagine a cFigure 2olumn as an example of a point load (a concentrated weight over a small area). On the other hand, a distributed load represents a widespread load across a large area. Imagine snow blanketing a roof. Engineers symbolize distributed loads as repetitive point loads often shown as rectangles.

Think of a uniform depth of snow blanketing a roof. Now consider gusts of wind blowing across the snow and accumulating a pile on one side of the roof (an unbalanced snow load).  Engineers symbolize unbalanced snow as a triangle superimposed over a rectangle or, in certain situations, a larger rectangle.

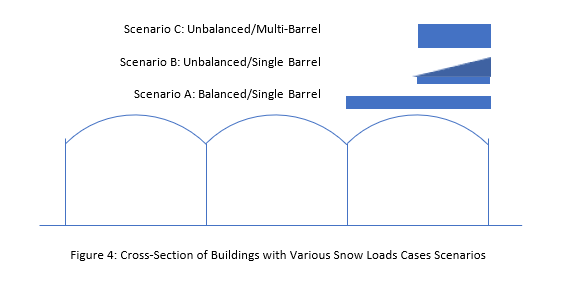

Present-day building codes recognize a design standard known as ASCE 7 – Minimum Design Loads for Buildings and Other Structures. This standard is considered a modern benchmark for determining a variety of loads on structures, including unbalanced snow loads. Based on the procedures in ASCE 7, three snow load cases exist for the aforementioned building, which is adjacent to two other buildings. The snow load cases are depicted in Figure 4 and labeled “balanced/single barrel,” “unbalanced/single barrel,” and “unbalanced/multi-barrel.”  Based on the geometry of the roof, the magnitude of the unbalanced/multi-barrel distributed load is twice that of the balanced/single barrel.

Figure 4

Of the three snow load cases, the unbalanced/multi-barrel case would generate the most severe effect on the roof structure. Based on the procedures in ASCE 7, the unbalanced/multi-barrel distributed load is twice the magnitude of the balanced/single barrel load and acts over half of the roof. Details of the weather data indicate that the unbalanced/multi-barrel snow load is 10 pounds per square foot.  However, the 10-pounds-per-square-foot snow load that accumulated on the roof did not generate an effect greater than that of the minimum required 20-pounds-per-square-foot live load on the roof.

Based on the outcome of the analysis, it can be concluded that the snow load, alone, would not have damaged the building; a defect of some sort must have been present. Given the absence of details from the scene, a specific defect cannot be identified. Nonetheless, the theory is maintained that if the effects of the snow load were less than the effects of the code-required minimum live load, a defect must have been present among the structure.
