Little Black Box - Big Data

After an airplane crash, a search is made to locate the black boxes (the airplane’s flight recorder and cockpit voice recorder). The flight recorder is an electronic recording device that contains information from the flight data recorder and the cockpit voice recorder records the audio conversation and surrounding sounds happening within the cockpit. The data is used by investigators to assist in determining the cause of the crash. These recorders are referred to as “Black Boxes,” even though they are painted orange.

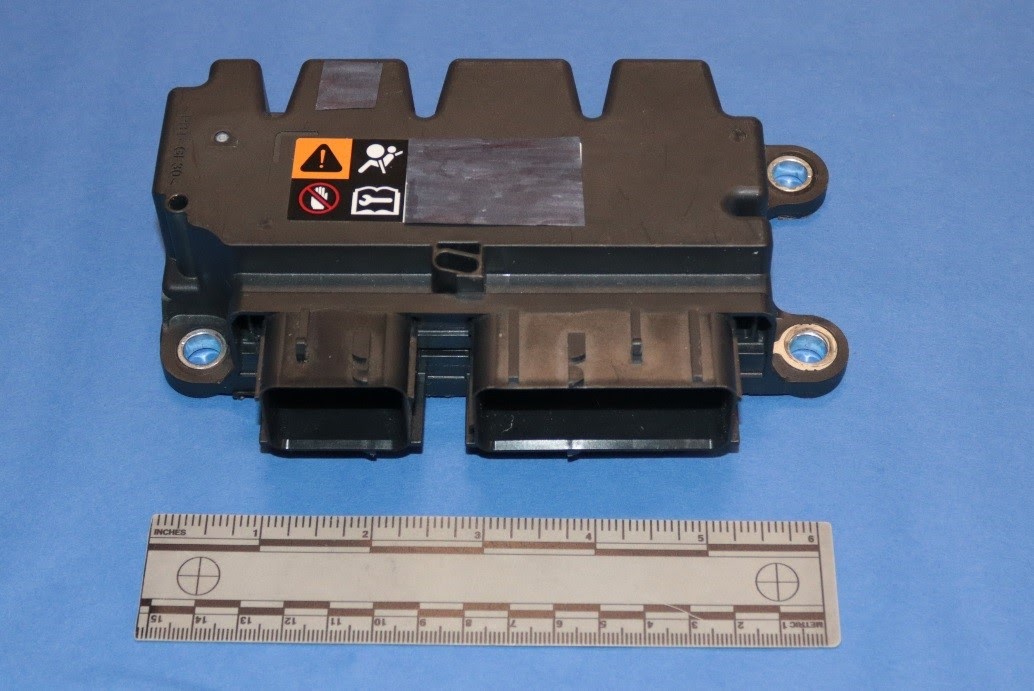

Most automobiles and light-duty trucks are equipped with an electronic recording device, also referred to as a “Black Box,” or an “airbag control module” that may contain data related to a crash. The exterior of the airbag control module, shown below, is black, however, some airbag control modules are silver in color. The main purpose of the airbag control module is to monitor the vehicle sensors and deploy the restraint system components (airbags and seat belt pre-tensioners) when the vehicle experiences, or exceeds a set of conditions that the manufacturer has determined would be related to a crash event. The module also determines whether the event was severe enough to deploy the restraint systems. If the restraint systems deploy, it is referred to as a deployment event. Otherwise, it is a non-deployment event.

Figure 1

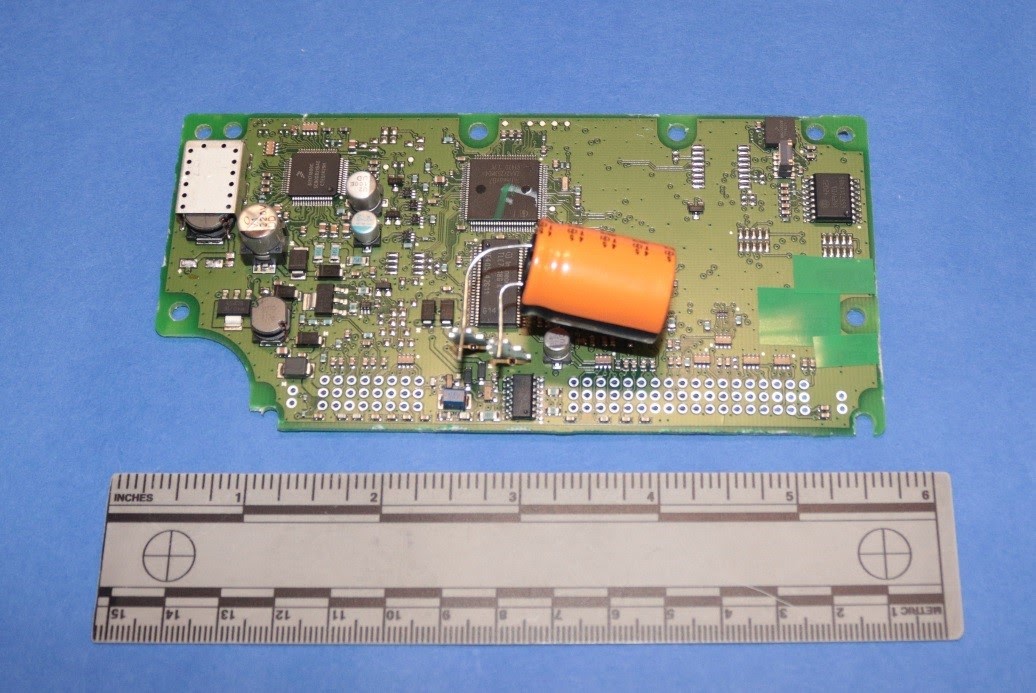

The printed circuit board, shown below, was contained within a black airbag control module. The printed circuit board is equipped with a memory chip that stores the data observed during the Deployment Event and/or Non-deployment Event.


Figure 2


In a Deployment Event, data is stored when the vehicle experiences an event of sufficient magnitude to deploy the airbags. The data from a Deployment Event is protected, and locked, and cannot be overwritten.

Data is stored as a Non-deployment Event when; (1) the vehicle experiences an event that meets a recording threshold and (2) the deceleration rate is less than the level required to deploy the airbags. The data from a Non-deployment Event is not protected and can be overwritten by a subsequent event.

Depending on the vehicle and model, the airbag control module may also store several seconds of pre-crash data, such as the accelerator pedal position, engine speed (rpm), brake switch status (Off/On), wheel speed, and steering wheel position. The pre-crash data may be useful in determining the events of a crash and/or the response of the vehicle to a driver’s input.

As an example, consider a situation where a mechanical fault with the vehicle was reported to have caused a crash. The pre-crash data may show that the engine speed was reduced after the accelerator pedal was released. Likewise, a change in the brake switch status, from Off to On, reduced the wheel speed. These data indicate the engine and brake system were functional and responded to the driver’s input.

The data in a vehicle’s Black Box plays a big role in collision reconstruction. Bosch Crash Data Retrieval (CDR) Equipment is used to download data from a majority of the automobiles and light-duty trucks in use today. Engineers in the Charlotte, North Carolina, and Columbia, South Carolina offices of EDT have the Bosch (CDR) equipment and maintain a software subscription. EDT’s engineers are trained in recovery of data from vehicles and in use of the data in collision reconstruction.
